Vacuum Forming (Thermoforming) of Plastic Sheet — Estonia

Vesimentor operates a vacuum forming (thermoforming) line in Pärnu, Estonia, for large, thin-walled plastic components produced from heated plastic sheet. Typical parts include lamp hoods and light housings, illuminated signs, covers, panels and enclosures where a seamless, large-area shape is required at a lower tooling cost than injection moulding. Thermoformed parts can be further finished in-house with vacuum metallizing, trimming, CNC machining and assembly — delivered ready to install from a single supplier.

Why Vacuum Forming

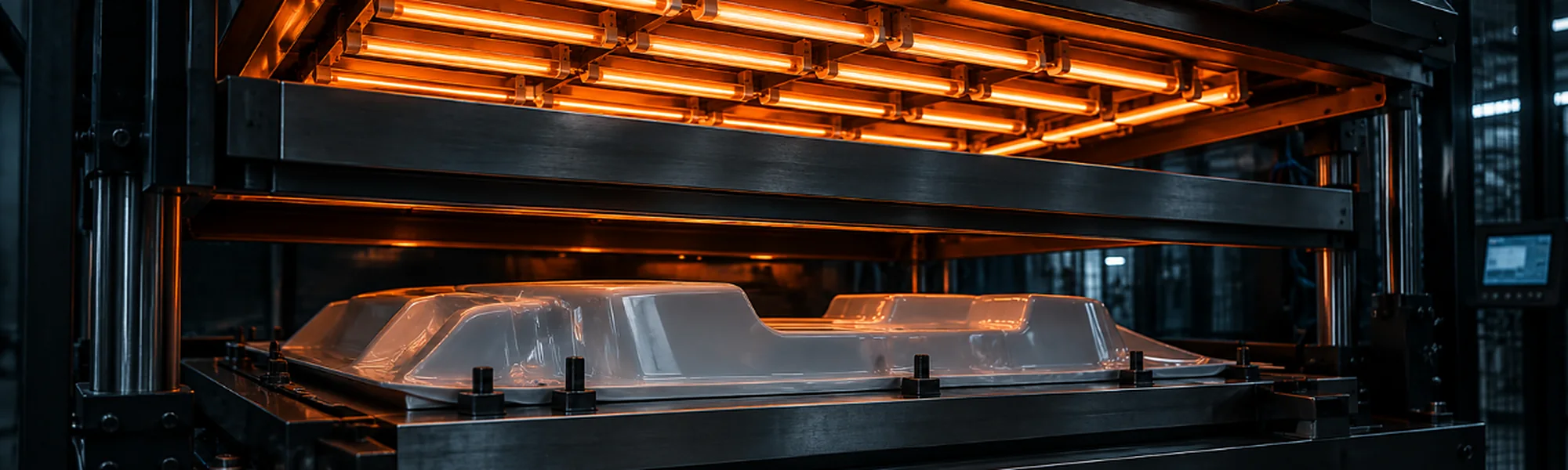

In vacuum forming a plastic sheet is heated to a pliable forming temperature, draped over or into a mould and drawn onto the tool by vacuum. Once the sheet cools, the formed part is released and trimmed. Compared to injection moulding, the tooling is simpler and significantly less expensive, making the process economic for large parts and for lower-to-medium production volumes. Compared to rotational moulding, thermoforming is better suited to thin-walled, light and often visually important components — reflectors, lamp hoods, illuminated signs, machine covers, POS displays, protective panels and decorative enclosures.

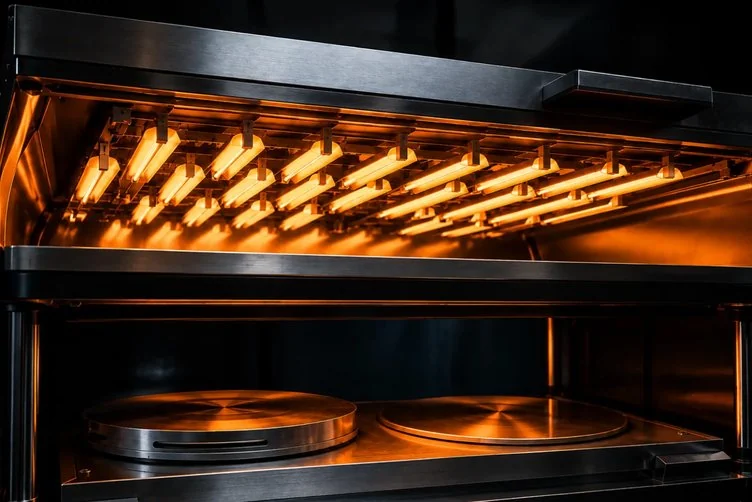

Equipment and Technical Capability

• Maximum part footprint: 1.4 × 1.4 m
• Maximum forming depth: 0.4 m
• Materials processed: ABS, HIPS, PMMA, PC, PETG, PVC and other thermoformable sheet grades on project basis
• Sheet types: clear, coloured, tinted, co-extruded and metallized-ready grades
• Batch sizes: prototype through to medium-volume serial production
• Post-forming: trimming, CNC machining of edges and mounting features, drilling, assembly, bonding
• Surface finishing: the thermoformed surface is an excellent substrate for vacuum metallizing — widely used for reflectors, lamp hoods, decorative signage and display panels

Our vacuum forming line is part of a broader in-house plastic production capability that also covers injection moulding with clamping forces up to 500 tonnes and rotational moulding for seamless hollow bodies. A single supplier can therefore cover the full range of plastic forming routes and deliver a finished, assembled product.

The Integrated Process

1. DFM and co-design. Our engineers review the 3D model against thermoforming constraints — draft angles, wall-thickness distribution, undercuts, trimming strategy and mounting features — together with the target surface finish and any downstream operations.
2. Tooling. Thermoforming tooling is simpler and less expensive than injection tooling; typically a single-sided aluminium or composite mould is sufficient. Tooling selection is made together with the customer based on volume and surface-quality target.
3. Sheet heating and forming. The plastic sheet is heated to its forming temperature, positioned over the mould and drawn onto the tool under vacuum. Cycle parameters (sheet temperature, vacuum pressure, cooling time) are tuned to achieve the required wall-thickness distribution and surface finish.
4. Trimming and machining. Formed parts are trimmed to net shape, edges finished and mounting features CNC-machined or drilled in-house.
5. Finishing. Optional vacuum metallizing for reflectors, signage and decorative panels; bonding, labelling and assembly with further components.
6. Dispatch. Parts are shipped ready to install, packaged to protect cosmetic surfaces.

Materials and Standards

Sheet material is chosen against the service conditions of the part — outdoor vs. indoor use, UV exposure, temperature range, fire class and cosmetic requirements. Standard choices include ABS and HIPS for structural covers and housings, PC for high-impact transparent parts, PMMA for optical clarity and UV stability in signage and luminaires, and PETG for clear packaging and display applications. Where the part will be subsequently metallized, substrate selection is coordinated with the metallizing team to ensure the correct surface characteristics for aluminium deposition and topcoat adhesion.

Vesimentor is certified to ISO 9001 (quality management), ISO 14001 (environmental management) and AQAP 2110 (NATO quality requirements for design, development and production). For defence and critical-infrastructure programmes, AQAP 2110 is a qualifying criterion that remains exceptionally rare among thermoforming subcontractors in the Baltic and Nordic region.

Typical Applications

• Lighting: lamp hoods, LED reflector bodies, diffusers and luminaire covers — often combined with in-house vacuum metallizing
• Signage and retail: illuminated signs, backlit displays, POS fixtures, dimensional letters and decorative elements
• Industrial equipment: machine covers and hoods, operator-panel housings, maintenance access panels, protective shields
• Transport and handling: internal trim panels, equipment covers, protective liners
• Consumer and appliance: large decorative shells, appliance housings and cosmetic panels where thin-walled, low-to-medium-volume production is required
• Prototyping and small series: large cosmetic or functional panels before committing to injection tooling

Why Vesimentor

• Integrated supplier — formed, metallized, ship-ready. Thermoforming, trimming, CNC post-processing, decorative metallizing and assembly from one facility in Pärnu.
• Three forming routes under one roof. Injection moulding, rotational moulding and vacuum forming — the right process for the right part.
• Lower tooling cost than injection moulding. Ideal for large parts, medium volumes and early-stage products before committing to injection tooling.
• Nearshoring to the Nordics and Central Europe. Pärnu offers short lead times and direct road and ferry links to Helsinki, Stockholm, Riga and continental Europe, with EU-level IP protection and communication.
• Defence-grade quality system. ISO 9001 + ISO 14001 + AQAP 2110, auditable end to end.

Request a Quotation

Send us your drawings, 3D models or samples. Our engineering team will respond with a feasibility assessment, sheet-material recommendation, tooling approach and indicative pricing for the complete formed-and-finished assembly.
